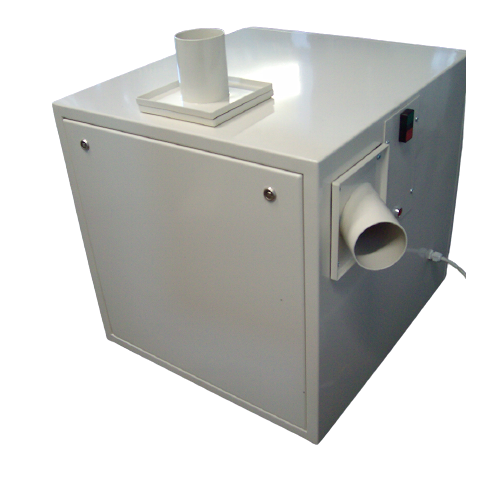

CUBE is an independent aspirator with wheels and it can be easily connected to the workbench. The suction tube can be placed in three different position: on the top, the front or the back side.
Metal powder is recovered though a heavy duty filter and an absolute H13 filter with 99,95% MPPS efficiency.
CUBE is equipped with an inverter and, upon request, with a potentiometer.
| CODE | CUBO.MF |
|---|---|
| DESCRIPTION | ASPIRATOR |
| POWER | V230 SP 50 HZ |
| CODE | CUBO.TF |
|---|---|
| DESCRIPTION | ASPIRATOR |
| POWER | V230 SP 50 HZ |
| FAN | kW 0.55 (HP 0.75) 2800 RPM |
| AIR FLOW | 500 mc/h |
| SOUND EMISSION | 40 dB |
| SIZE | mm. 550x550x600H |
| WEIGHT | Kg. 65 |
