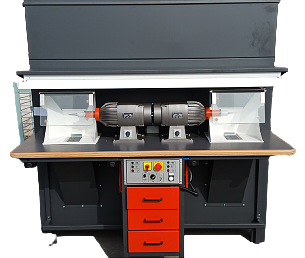

The sanding workbench (single or double station) is designed to recover medium heavy powders (generated by filing/sanding) in separate compartments though a semi-automatic pneumatic self-cleaning of the cartridge filters.
The workbenches can be supplied in 230V SP of V230/400 with or without inverter TP 50Hz CE compliant.
| CODE | CARTEG1P.TF.CE |
|---|---|
| DESCRIPTION | 1-STATION SANDER – CE COMPLIANT |
| POWER | V230/400 TP 50 HZ |
| kW AND RPM | 1 POLISHING MOTOR kW 0.75 (HP 1) – 1 SPEED 2800 RPM |
| CODE | CARTEG1P.TF.INV.CE |
|---|---|
| DESCRIPTION | 1-STATION SANDER WITH INVERTER – CE COMPLIANT |
| POWER | V230/400 TP 50 HZ |
| kW AND RPM | 1 POLISHING MOTOR kW 0.75 (HP 1) + INVERTER |
| FAN | kW 1.1 (HP 1.50) 2800 RPM |
| AIR FLOW | 1000 mc/h |
| SOUND EMISSION | 69 dB |
| SIZE | mm. 1000x1150x1650H |
| WEIGHT | Kg. 250 |
| CODE | CARTEG2P.TF.CE |
|---|---|
| DESCRIPTION | 2-STATION SANDER – CE COMPLIANT |
| POWER | V230/400 TP 50 HZ |
| kW AND RPM | 2 POLISHING MOTORS kW 0.75 (HP 1) – 1 SPEED (2800 RPM) |
| CODE | CARTEG2P.TF.INV.CE |
|---|---|
| DESCRIPTION | 2-STATION SANDER WITH INVERTER – CE COMPLIANT |
| POWER | V230/400 TP 50 HZ |
| kW AND RPM | 2 POLISHING MOTORS kW 0.75 (HP 1) + 2 INVERTERS |
| FAN | kW 0.75 (HP 1) 1400 RPM |
| AIR FLOW | 1950 mc/h |
| SOUND EMISSION | 71 dB |
| SIZE | mm. 1600x1150x1650H |
| WEIGHT | Kg. 350 |
